Home Gardening Moisture Retention

Background

This biochar release device enhances soil conditions with a thermal-driven hook and a hygro-driven hook. In dry conditions, the hygro-driven hook uncoils to release biochar, while the thermal-driven hook operates similarly in high temperatures. Ideal for home gardening, it boosts drought resistance during temporary outdoor use.

How it Works

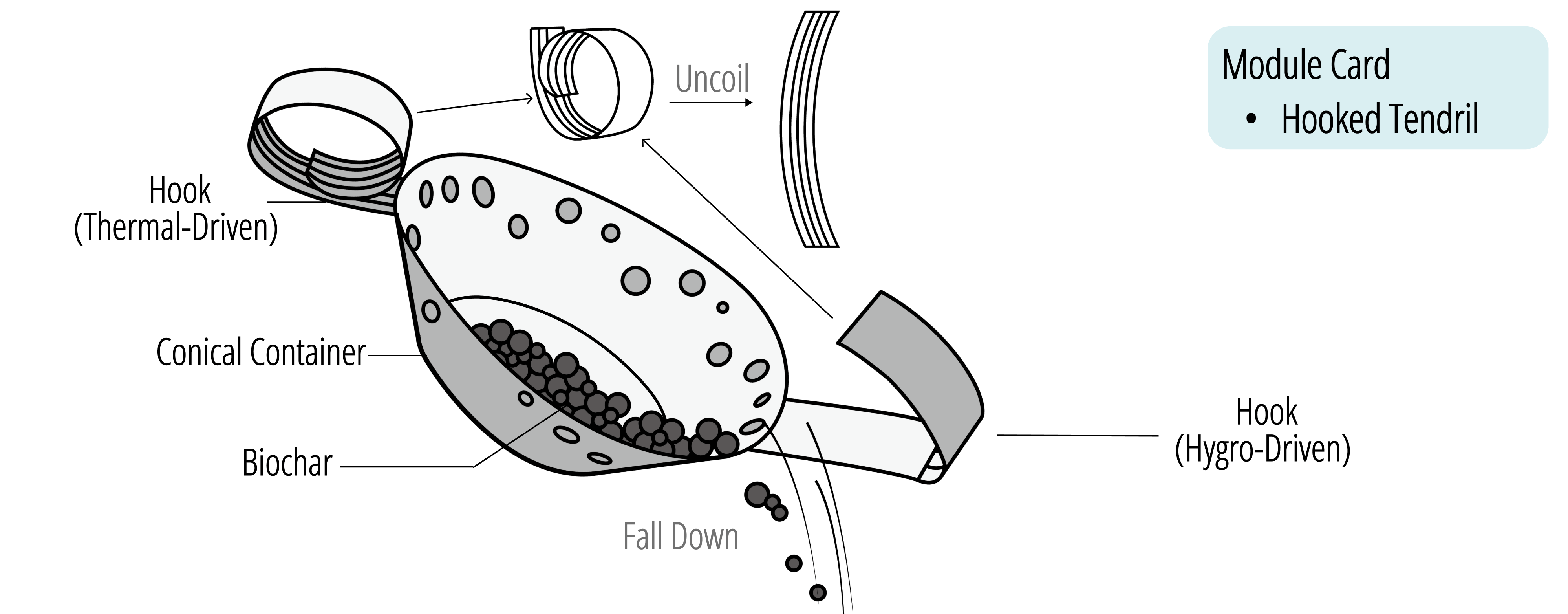

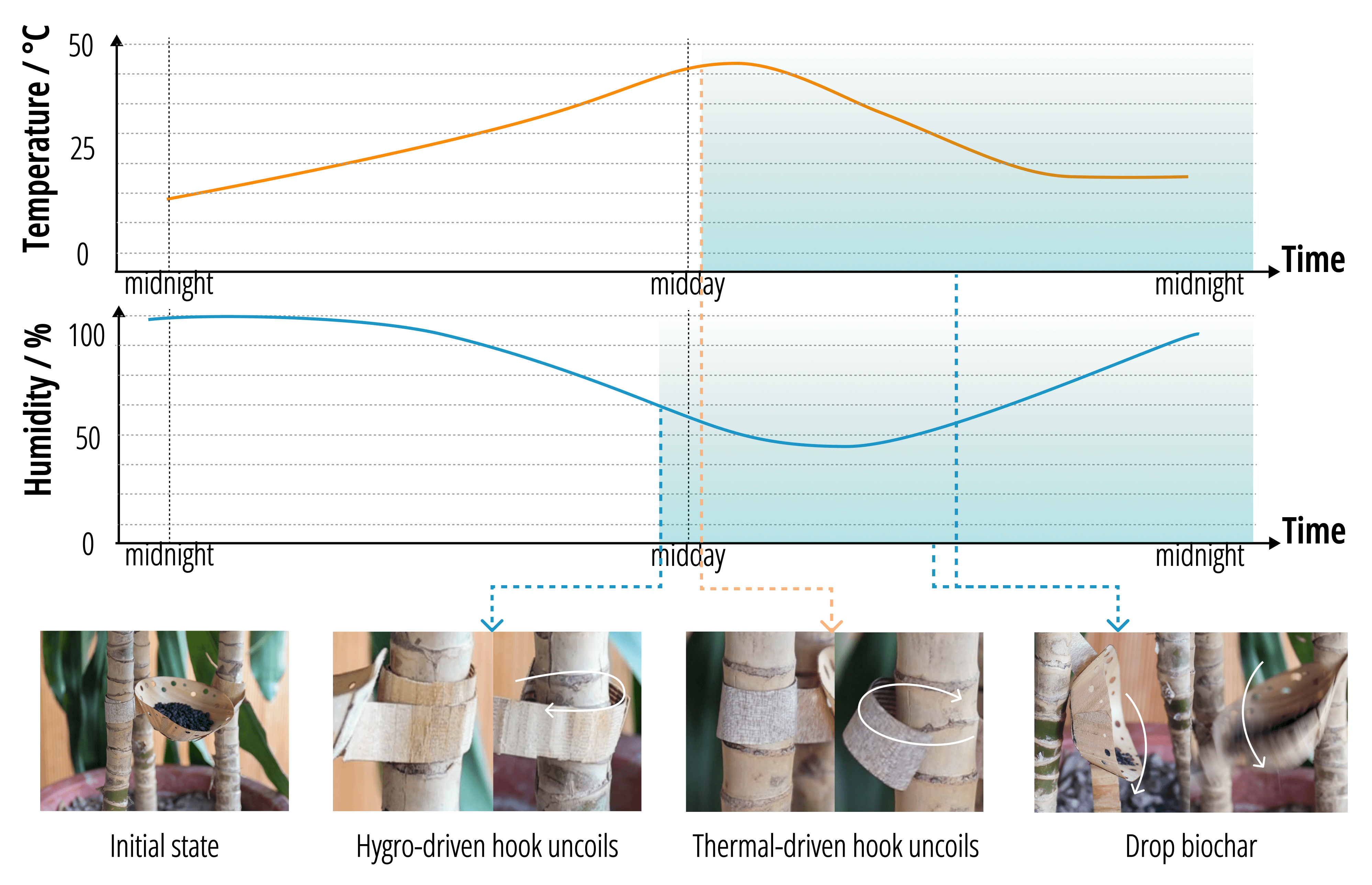

gardening strcture gardening analysis

Coordinating Mode

The device design follows the substitutive mode.

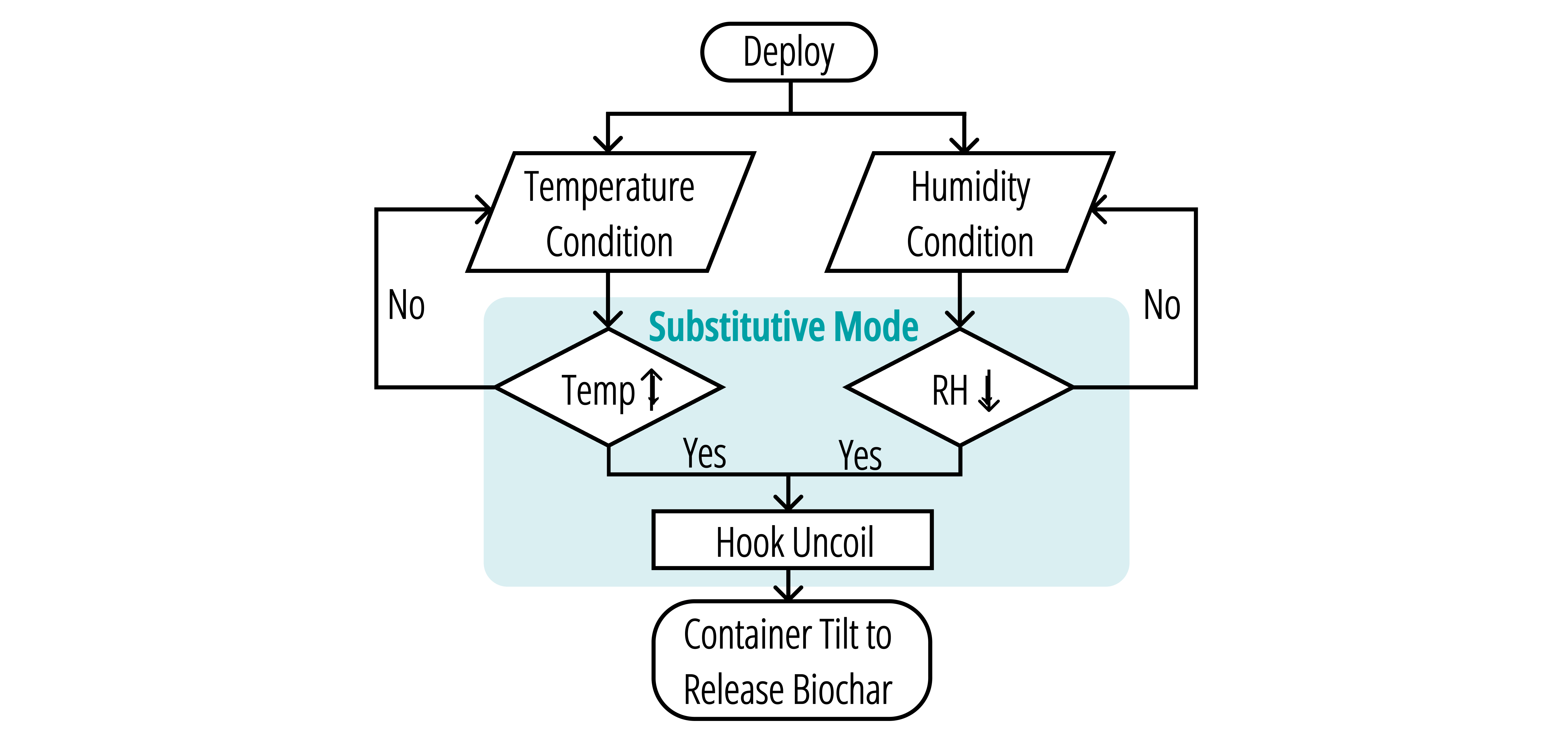

Substitutive Mode

Result

The device releases biochar when either trigger is activated, enhancing soil moisture retention. It effectively protects plants from prolonged drought or high temperatures, making it perfect for short-term, unattended home gardening.
